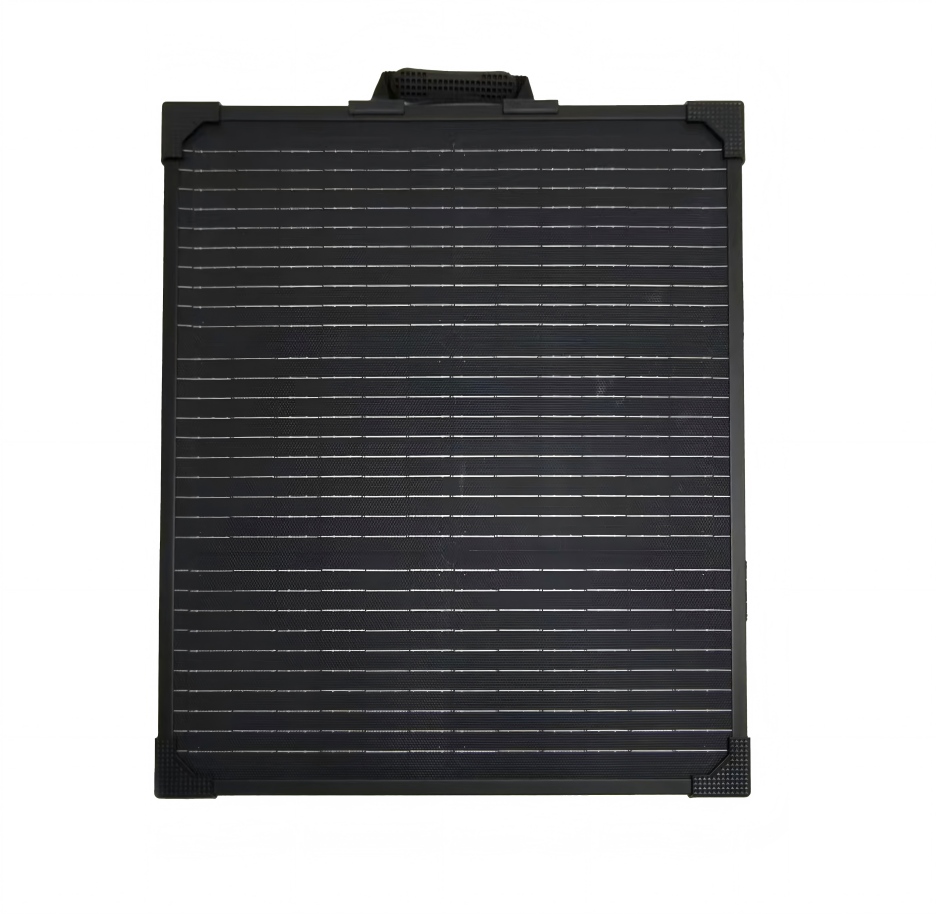

Lightweight 200W Foldable Solar Panel

More lightweight and durable than normal foldable solar panel. Portable to use in outdoor camping and RV travelling

0084-20-43595588

support@sensunsolar.com

Parameters

Electrical Data

Model

HS-SF504

Maximum Power

200W

Max. Power Voltage(Vmp)

20.3V

Max. Power Current(Imp)

10A

Open Circuit Voltage(Voc)

23.3V

Short Ciruit Current (Isc)

10.6A

STC:

Irradiance 1000W/m², Module temperature 25°C, AM=1.5

Type of Cell

Mono-crystalline (Above 22%)

Unfolded Size (mm/in)

2085*610*19.2mm/81.9*24*0.76in

Folded Size (mm/in)

520*610*78mm/20.5*24*3in

Net Weight (kg/lb)

8.9kg/19.2lb

Packing & Label

Cloth Bag (Inside Liner)

540*80*625mm

Master Carton

585*120*675mm

Sets/Carton

N.W./G.W.

8.9kg / 10.6kg

Master Carton/Pallet

66 CTNS

Loading (40"HQ)

1320PCS

Features

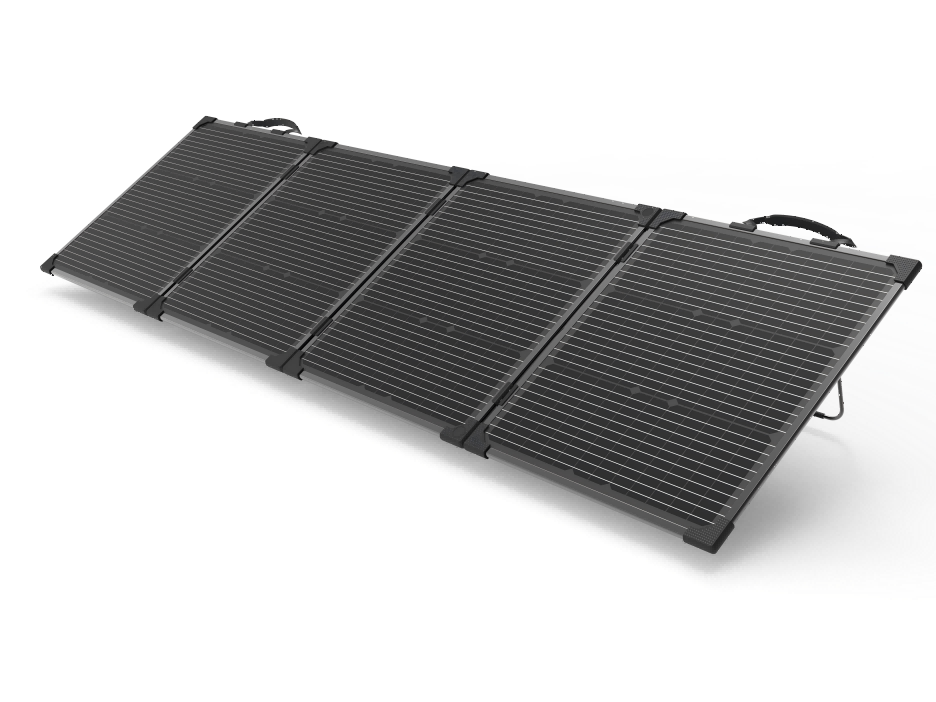

Suitable for using outdoor camping, RV travelling

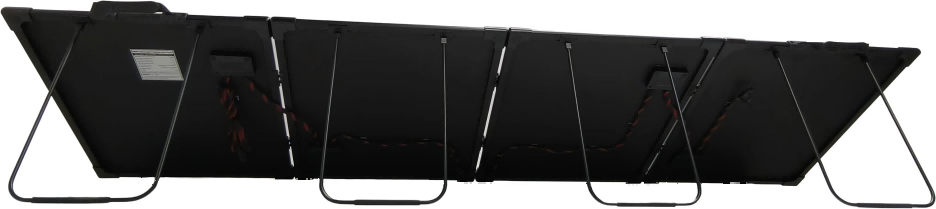

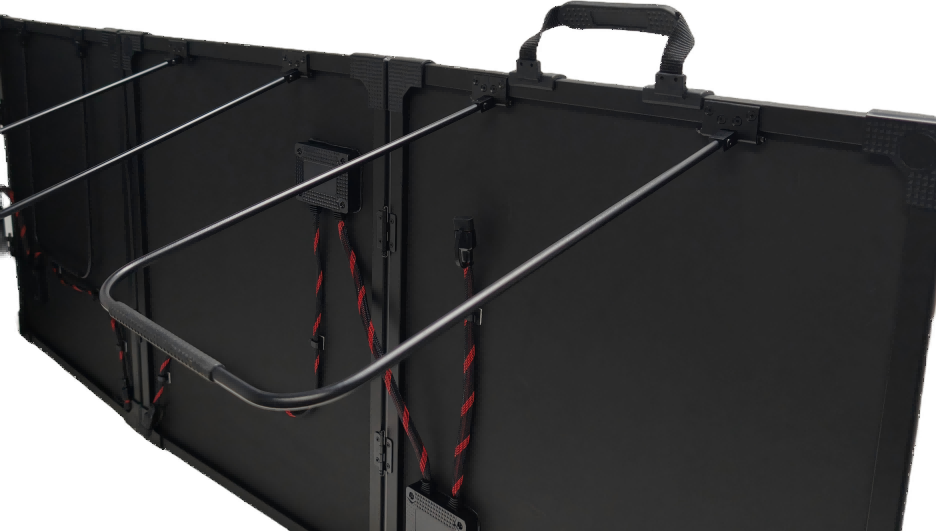

With bracket, face to the sunlight in different angle

More light, portable for carrying, more convenient to use in outdoor

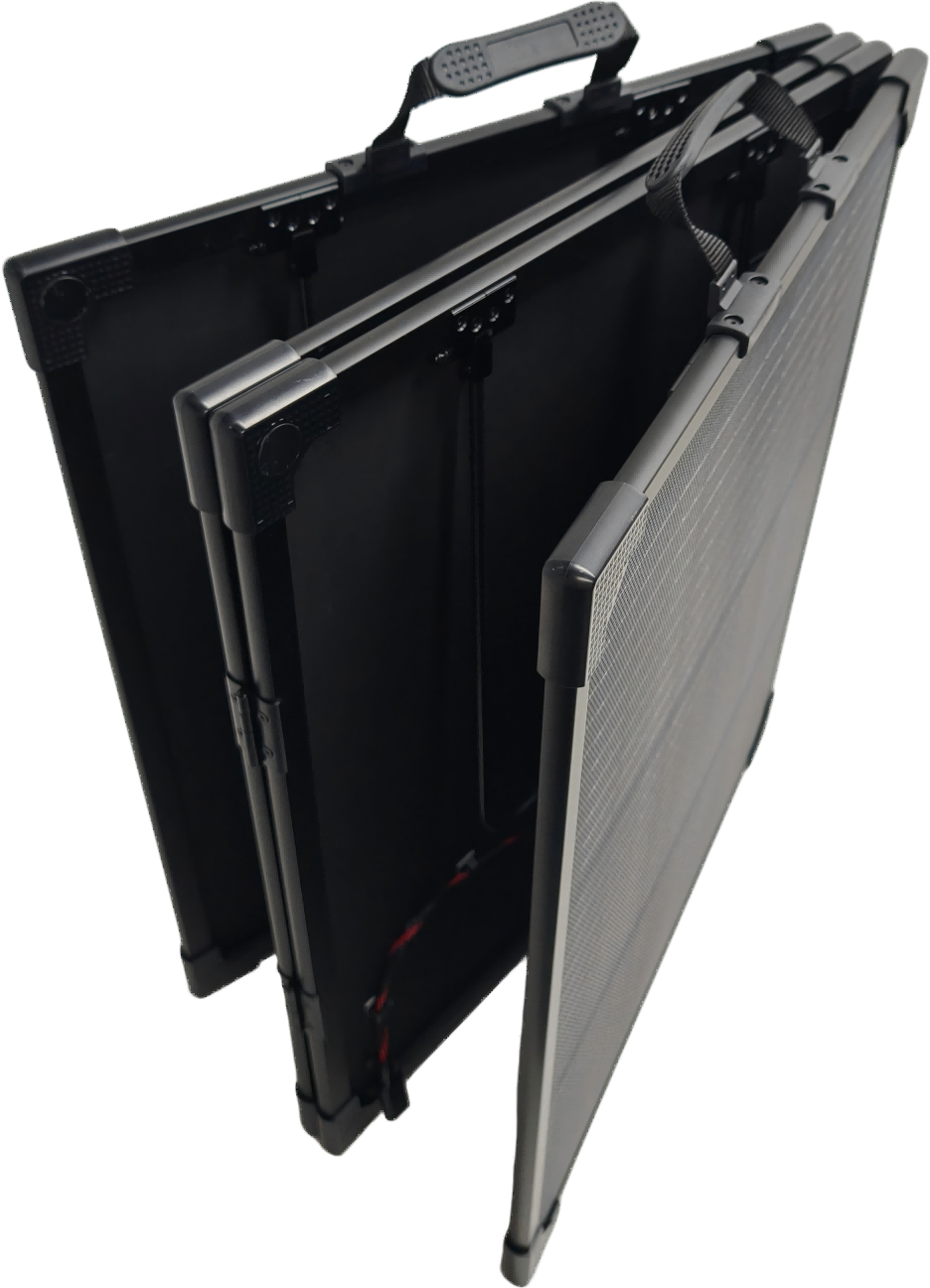

Easy to fold and storage, To bring more convenience to travel.
