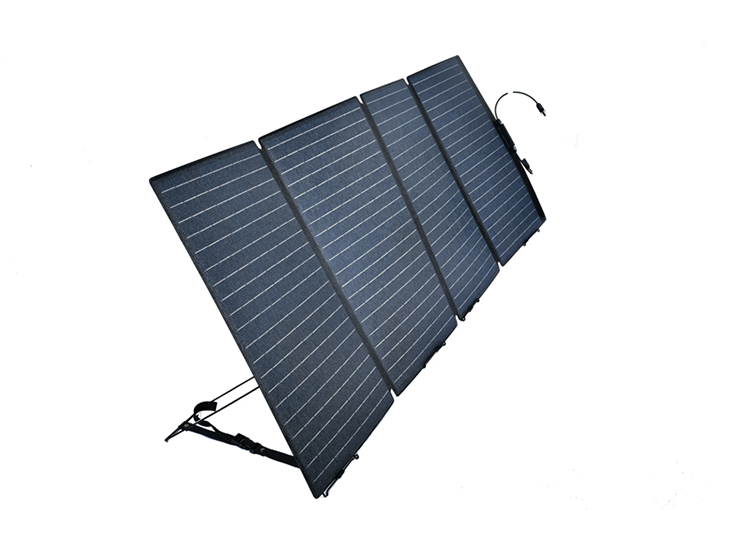

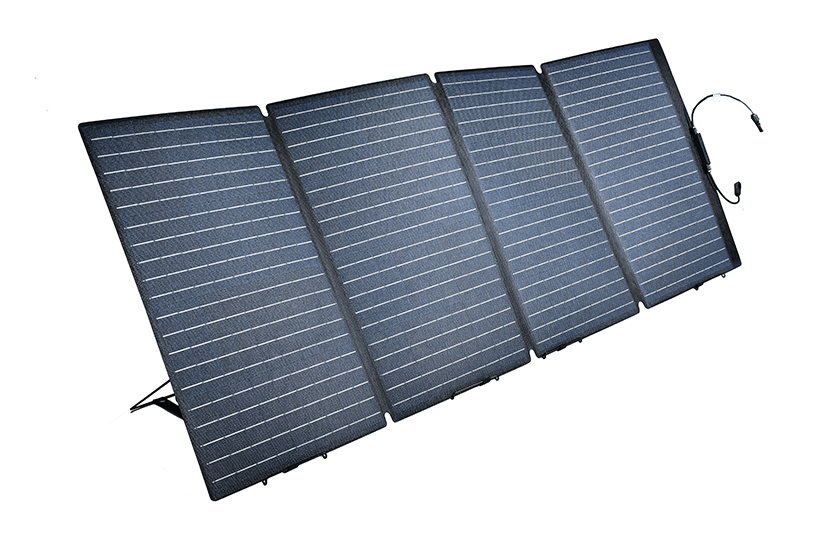

Laminated 200W Foldable Solar Panel

Integrated lamination foldable solar panel. Portable and waterproof, suitable for use in outdoor camping, hiking and RV travelling.

0084-20-43595588

support@sensunsolar.com

Parameters

Electrical Data

Model

HS-LF504

Maximum Power

200W

Max. Power Voltage(Vmp)

20.8V

Max. Power Current(Imp)

10.56A

Open Circuit Voltage(Voc)

23.6V

Short Ciruit Current (Isc)

11.19A

Type of Cell

Mono-crystalline (Above 22%)

Unfolded Size (mm/in)

2270*540*25mm/89.3*21.2*1in

Folded Size (mm/in)

605*540*50mm/23.8*21.2*2in

Net Weight (kg/lb)

8.5kg / 18.7lb

Packing & Label

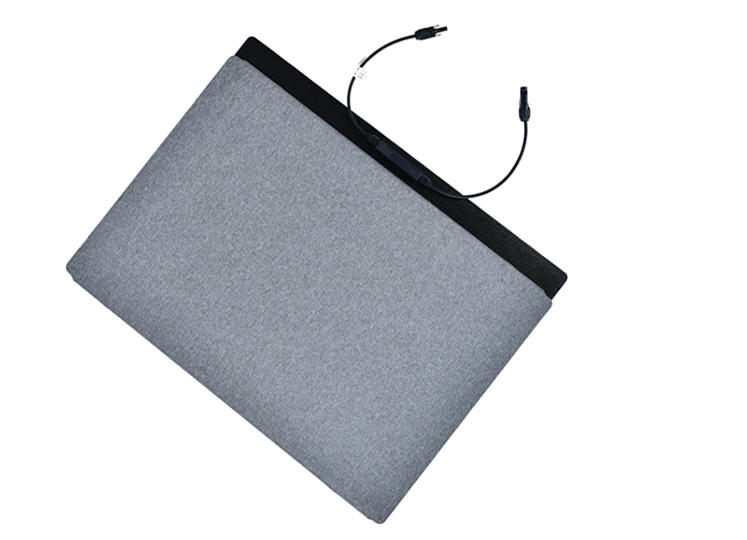

Cloth Bag (Inside Liner)

620*570*45mm (5mm EPE)

Inner Box

630*70*580mm

Master Carton

650*300*600mm

SETS/CTN

N.W./G.W./CTN

34KGS/38KGS

Master Carton/Pallet

24CTNS

Loading (40"HQ)

1800PCS

Features

Suitable for use in outdoor camping to charge solar system

200W solar power, to charge your equipment more power

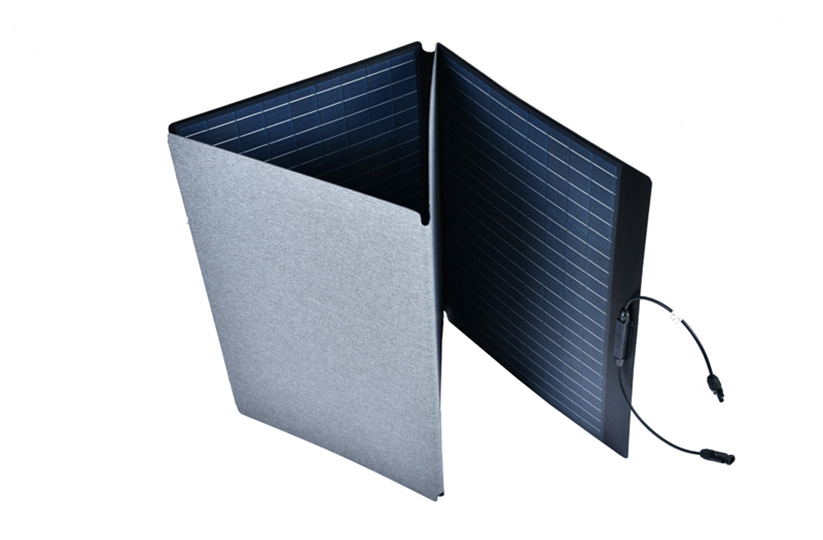

Foldable design, more convenient and portable

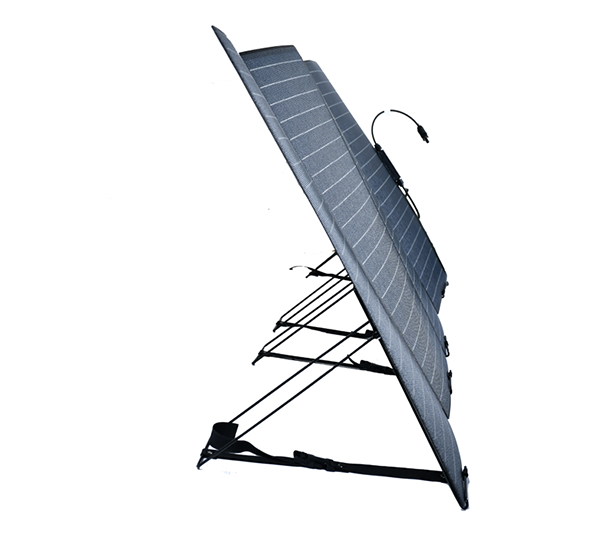

With bracket, face to the sunlight in different angle
