Laminated Foldable Solar Panel 100W

Integrated lamination technology, Lightweight and Portable. Use for outdoor charging portable solar power system, power bank or other portable equipment.

0084-20-43595588

support@sensunsolar.com

Parameters

Electrical Data

Model

HS-LF502

Maximum Power at STC (Pmax)

100W

Max. Power Voltage (Vmp)

20.8V

Max. Power Current (Imp)

5.28A

Open Circuit Voltage (Voc)

23.78V

Short Ciruit Current (Isc)

5.60A

Type Of Cell

Mono-crystalline (Above 22%)

Unfolded Size (mm/in)

1170*540*25mm/46*21.2*1in

Folded Size (mm/in)

605*540*35mm/23.8*21.2*1.4in

Net Weight (kg/lb)

4.5kg /9.9lb

Packing & Label

Cloth Bag (Inside Liner)

620*570*45mm (5mm EPE)

Master Carton

650*300*600mm

Sets/Carton

N.W./G.W.

22.5KGS/25KGS

Master Carton/Pallet

24CTNS

Loading (40"HQ)

2160PCS

Features

Portable for use in outdoor camping for charging solar power system

Integrated lamination technology, ETFE coating

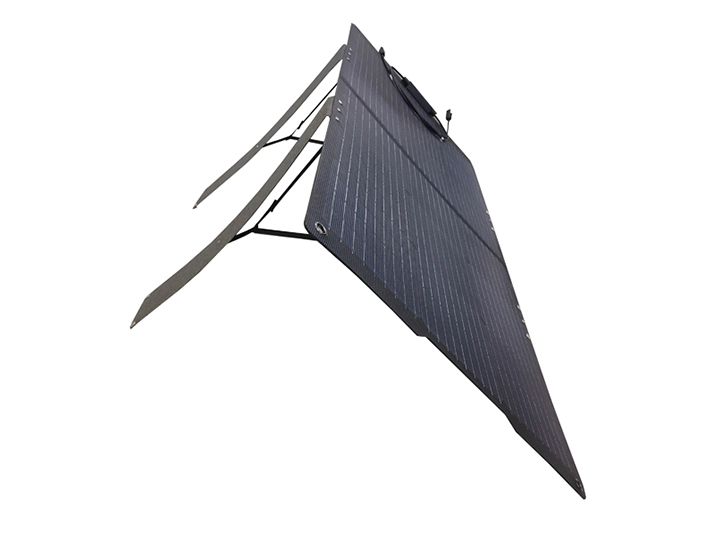

With bracket, face to sunlight in different angle

Foldable And Portable. Convenient for using outdoor
