100W Sewing Foldable Solar Panel

Portable and Foldable, suitable for use in outdoor for cell phone charge, solar power system charge and other portable equipment.

0084-20-43595588

support@sensunsolar.com

Parameters

Electrical Data

Model

HS-FF502

Maximum Power at STC (Pmax)

100W

Max. Power Voltage (Vmp)

20.8V

Max. Power Current (Imp)

5.28A

Open Circuit Voltage (Voc)

23.78V

Short Ciruit Current (Isc)

5.60A

Type Of Cell

Mono-crystalline (Above 22%)

Unfolded Size (mm/in)

1266*535*30mm/49.8*21*1.2in

Folded Size (mm/in)

635*535*40mm/25*21*1.6in

Net Weight (kg/lb)

3.9kg / 8.6lb

Packing & Label

Cloth Bag (Inside Liner)

620*570*45mm (5mm EPE)

Inner Box

660*55*550mm

Master Carton

670*300*570mm

SETS/CTN

N.W./G.W./CTN

19.5KGS/22KGS

Master Carton/Pallet

20CTNS

Loading (40"HQ)

1800PCS

Features

ETFE coating, Portable use for outdoor camping, hiking

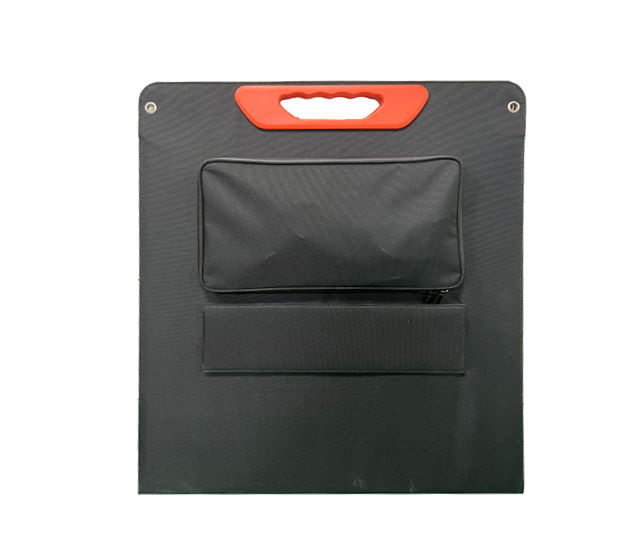

Lightweight, with handle, easy for carry

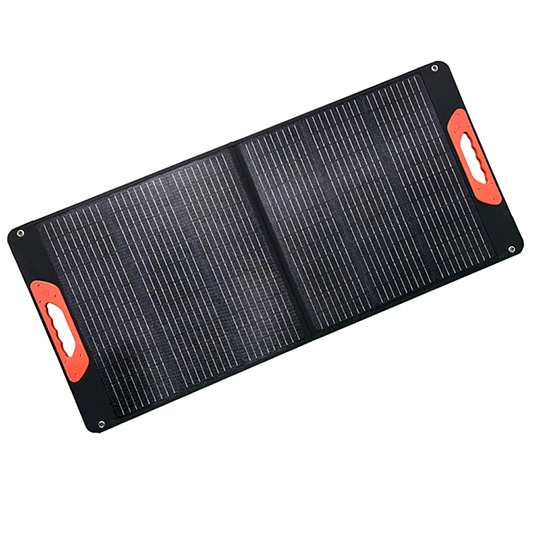

Foldable design, convenient and portable

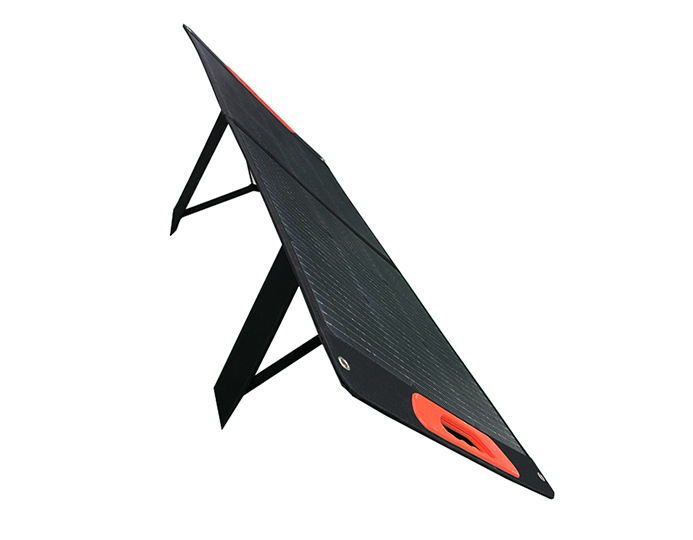

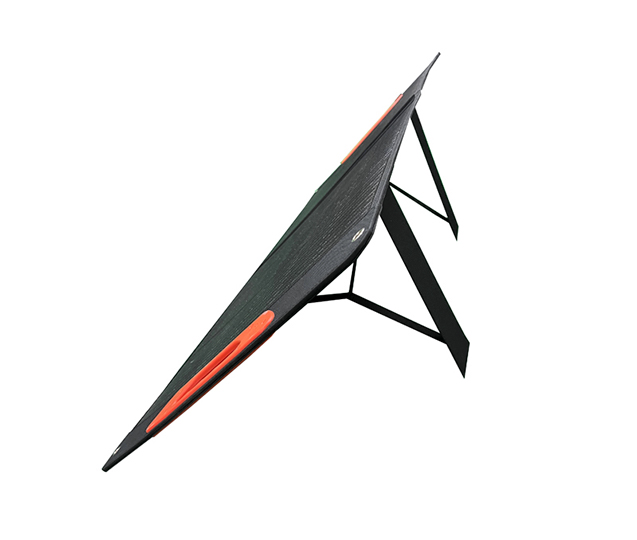

With bracket, face to sunlight in different angle
