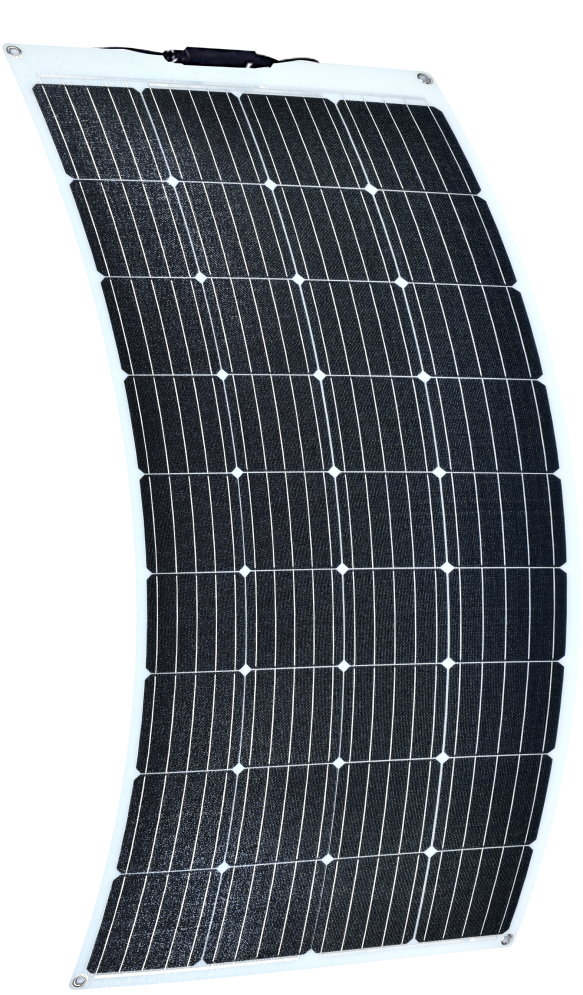

Lightweight 200W Foldable Solar Panel

Suitable for use in marine and RV. Lightweight and thin film, easy installation. Bringing more convenience to your travels.

0084-20-43595588

support@sensunsolar.com

Parameters

Electrical Data

Model

HS-FX200B

Maximum Power

200W

Max. Power Voltage(Vmp)

36V

Max. Power Current(Imp)

5.56A

Open Circuit Voltage(Voc)

41.4V

Short Ciruit Current (Isc)

5.8A

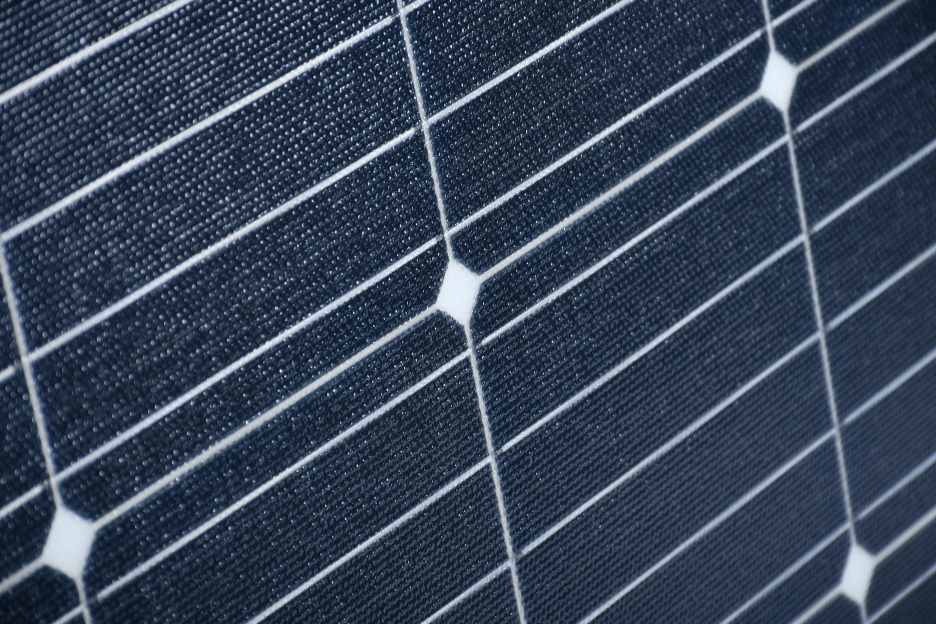

Type Of Cell

Mono-crystalline (Above 22%)

Size (mm/in)

1570*780*3.5mm / 61.8*30.7*0.14in

Net Weight

6kg / 13.2lb

Packing & Label

Inner Box

1600*45*810mm

Master Carton

1620*270*830mm

Sets/Carton

N.W./G.W./CTN

25KGS/35KGS

Master Carton/Pallet

24CTNS

Loading (40"HQ)

850PCS

Features

Suitable to use in Marine and RV travelling

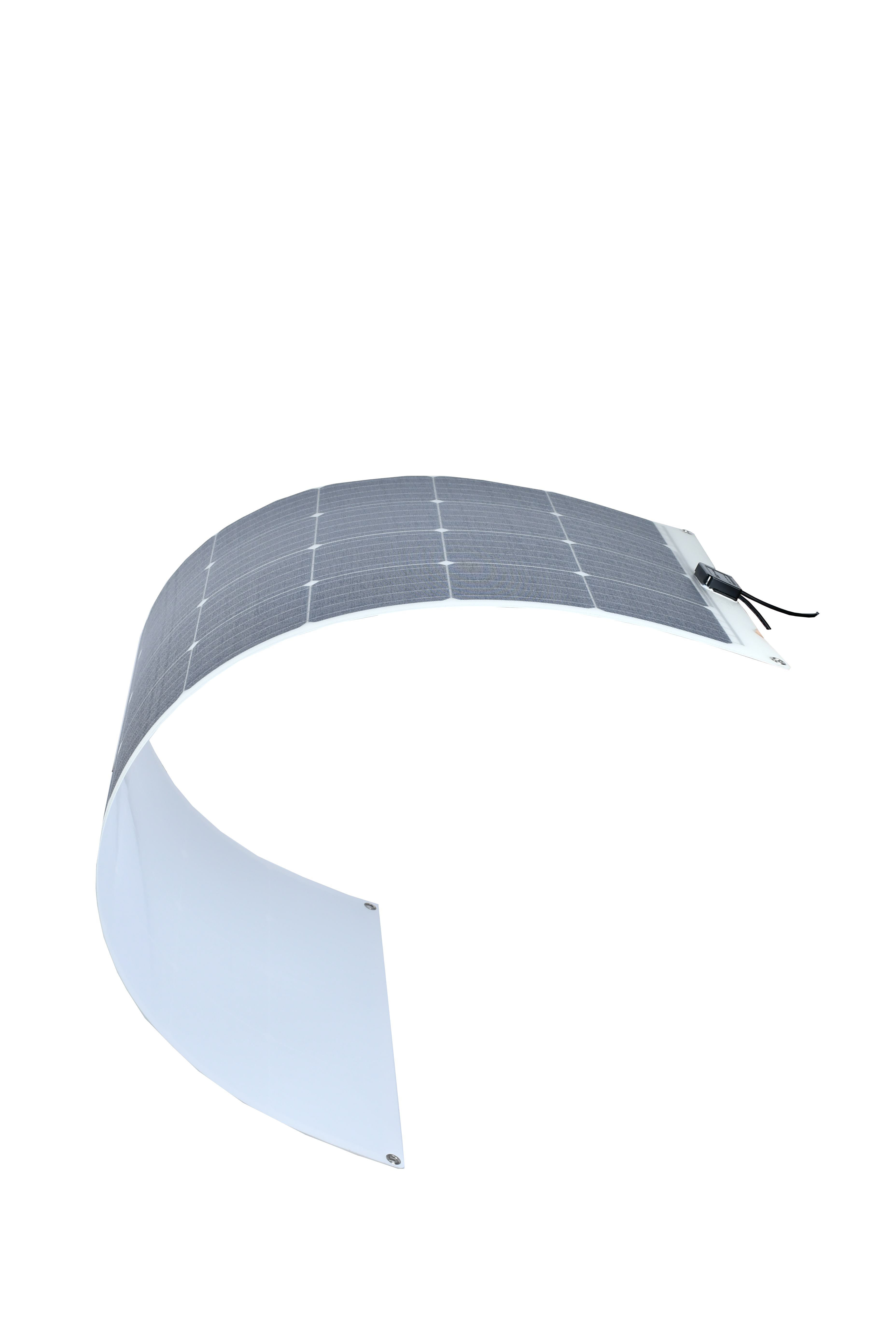

Lightweight and thin film, semi flexible technology

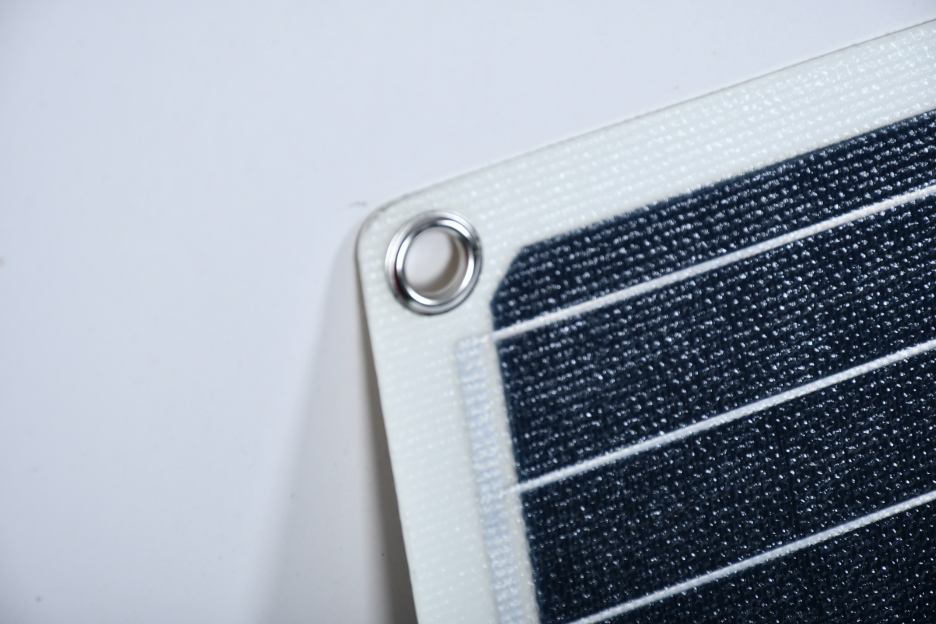

With eyelets, easy install in the RV roof or ship

Customized design, junction box can be in the back or front of solar panel
