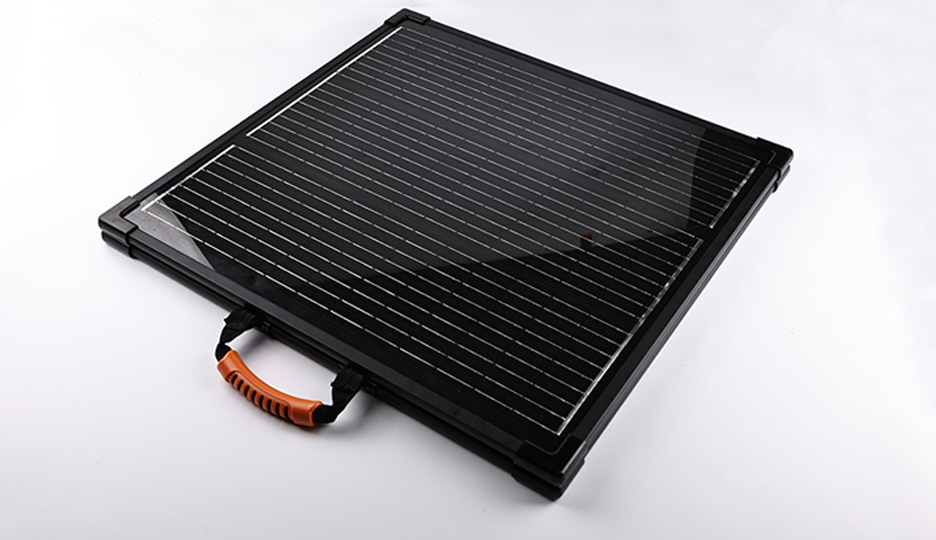

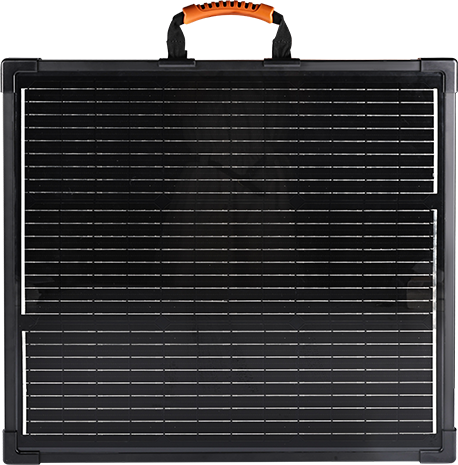

100W Glass Foldable Solar Panel

With glass cover, more durable and with long lifespan. Portable use in outdoor camping, hiking or RV travelling.

0084-20-43595588

support@sensunsolar.com

Parameters

Electrical Data

Model

HS-GF502

Maximum Power at STC (Pmax)

100W

Max. Power Voltage (Vmp)

20.8V

Max. Power Current (Imp)

5.28A

Open Circuit Voltage (Voc)

23.78V

Short Ciruit Current (Isc)

5.60A

Type of Cell

Mono-crystalline (Above 22%)

Unfolded Size (mm/in)

1085*570*30mm/42.7*22.4*1.18in

Folded Size (mm/in)

570*545*65mm/22.4*21*2.56in

Net Weight (kg/lb)

7.6/16.7

Packing & Label

Cloth Bag (Inside Liner)

600*570*70mm (5mm EPE)

Master Carton

610*90*580mm

Sets/Carton

N.W./G.W.

7.6kgs/9.2kgs

Master Carton/Pallet

48CTNS

Loading (40"HQ)

1800PCS

Features

With glass cover, more durable, long lifespan

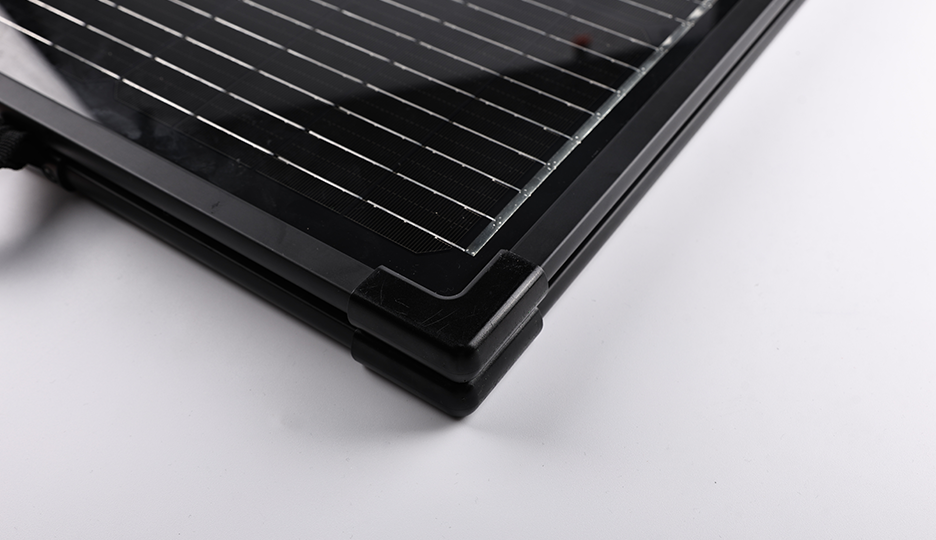

Aluminum frame, with ABS guard corner, protect solar panel better

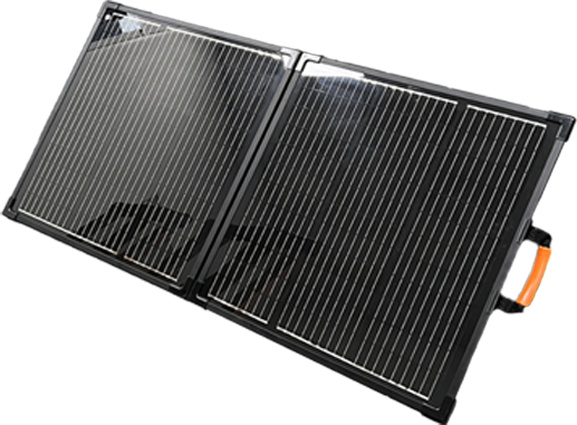

Foldable, Portable

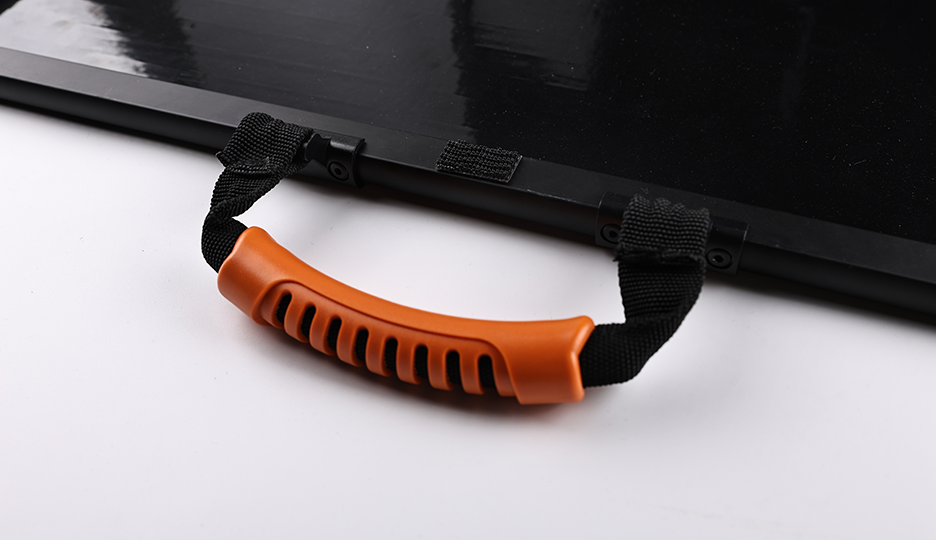

Plastic handle, portable handing
